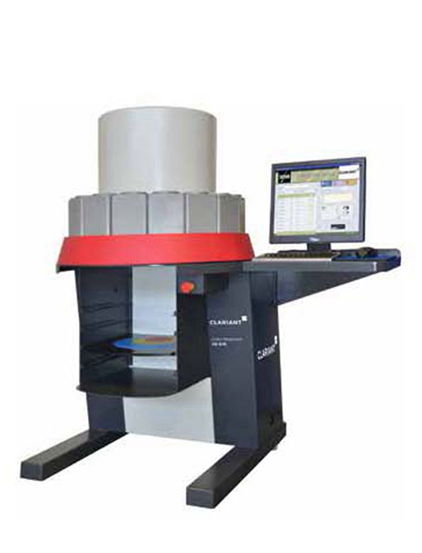

The IQ-S16 is one of the most compactmachines now available on the market with simultaneous colorant dispensingmode. It allows to save shop space without losing performance and accuracy.
Technical Features.
Dispensing mode: Simultaneous(up to sixcolorants at a time)
Accuracy: Down to 1/384 fl. oz(correspondingto 0.077ml)
Dispensing speed: 1.1L/min
Number of canisters : up to 16
Canister capacity: 3L
Pump: Stainless Steel 2 FL.oz.(corresponding to 60ml)
Colorant stirring: Automatic
Can sensor: Photocell can sensor
Can handling: Manual can shelf
Maximum can dimensions: 350W*375H*500Dmm
Compatibility: Universal and water based
Power supply: Single phase/110V/240V +/-10%
Machine dry wight: 180KG
Max machine size:780mmW*840mmD*1440mmH+Side shelf 500mm
Shipping size: 920W*920D*1800Hmm
Satefy: CE, cCSAus and C-Tick compliance
Software: ClariantPRO. SCAN color data base
Options: ClariantMatch color matchingsoftware and
ClariantVISION(digital image coloring)
Manual or automatic nozzle cap-stop Drop system
Spectrophotometer interface
Label printer
Bar Code scanner
